The Solution
NCFirewall™ bridges that gap—providing a compliant and secure way to exchange NC files between servers and CNC machines.
Executive Summary
NCFirewall™ is a secure, auditable file-exchange gateway that bridges the gap between IT-managed servers and CNC controllers in manufacturing environments.
It was developed to fully comply with CMMC 2.0 and NIST 800-171 Rev. 2 requirements, enabling manufacturers to safely transfer NC program files while keeping vulnerable CNC systems isolated from the corporate network.
NCFirewall™ eliminates the need for USB drives or unsecured network shares. Only validated, authorized, and traceable files are exchanged to and from the machines.
It combines modern Windows architecture, compliance-oriented design, and shop-floor usability, making it the first complete solution for compliant CNC file exchange.
Background and Motivation
CNC machines form the operational core of precision manufacturing but operate on operating systems and software stacks that differ radically from enterprise IT.
Many controllers still rely on Windows XP Embedded, Windows 2000, Windows 7, or Windows 10 LTS, and cannot support modern security tools such as antivirus, patch management, or group policy enforcement.
Connecting such systems directly to a domain controller (DC) is unsafe, unsupported, and non-compliant.
NCFirewall™ was conceived specifically to solve this challenge: enabling secure, compliant, and auditable data transfer between modern IT infrastructure and legacy or OEM-locked CNC systems.
Solution Overview
NCFirewall™ acts as a controlled intermediary firewall between the secure server environment and isolated CNC controllers.
It enforces file-transfer policies, validates each file’s authenticity, and maintains a tamper-resistant audit log of every event.
Core Capabilities
-
Secure file handling
Strict validation and policy enforcement
-
Audit trail
Complete transaction history in SQLite
-
User feedback
Machinist notifications for transfer success/failure
-
Network segmentation
CNC systems reside on a protected subnet
-
Effortless IT integration
Operates as a regular domain user within Active Directory
-

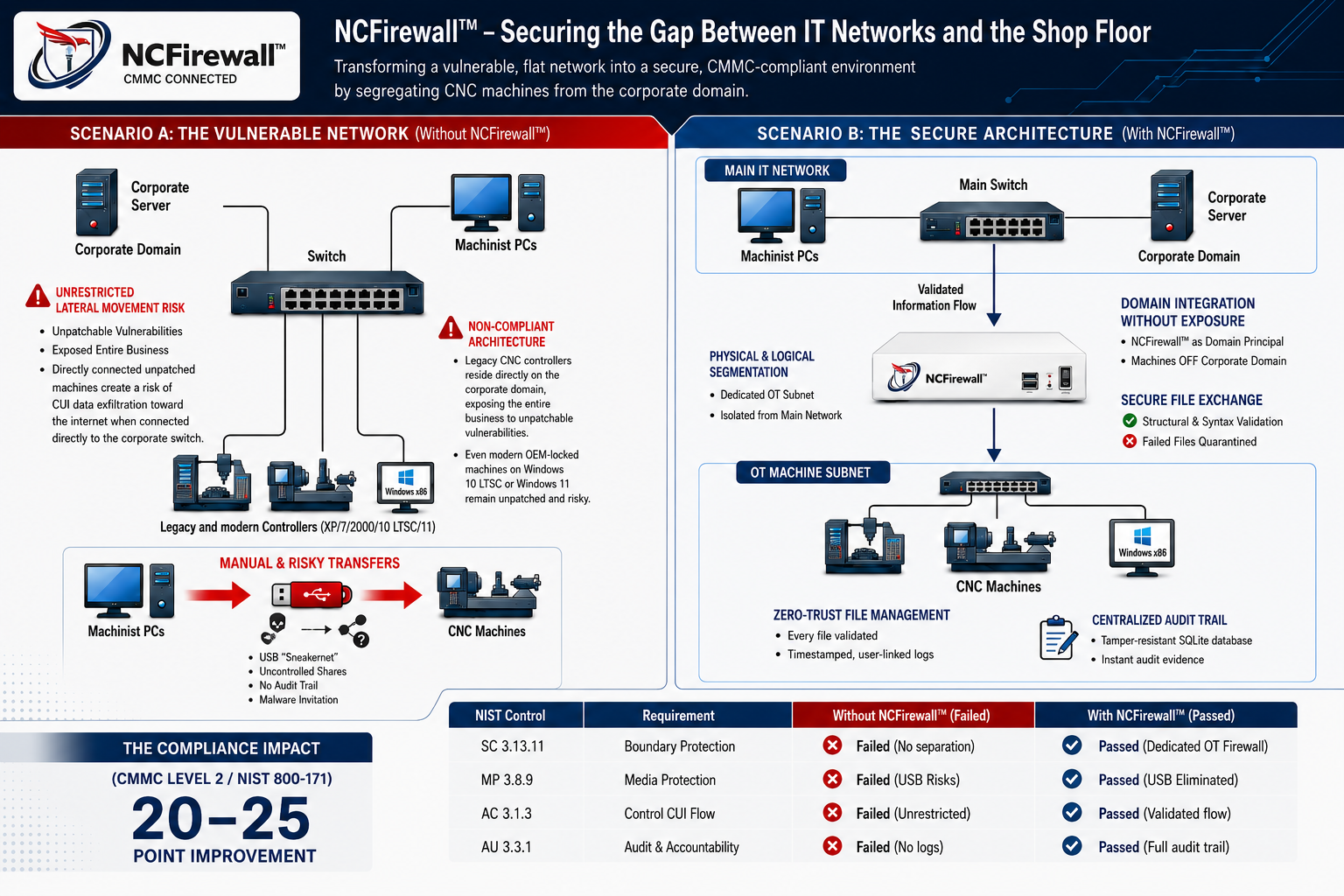

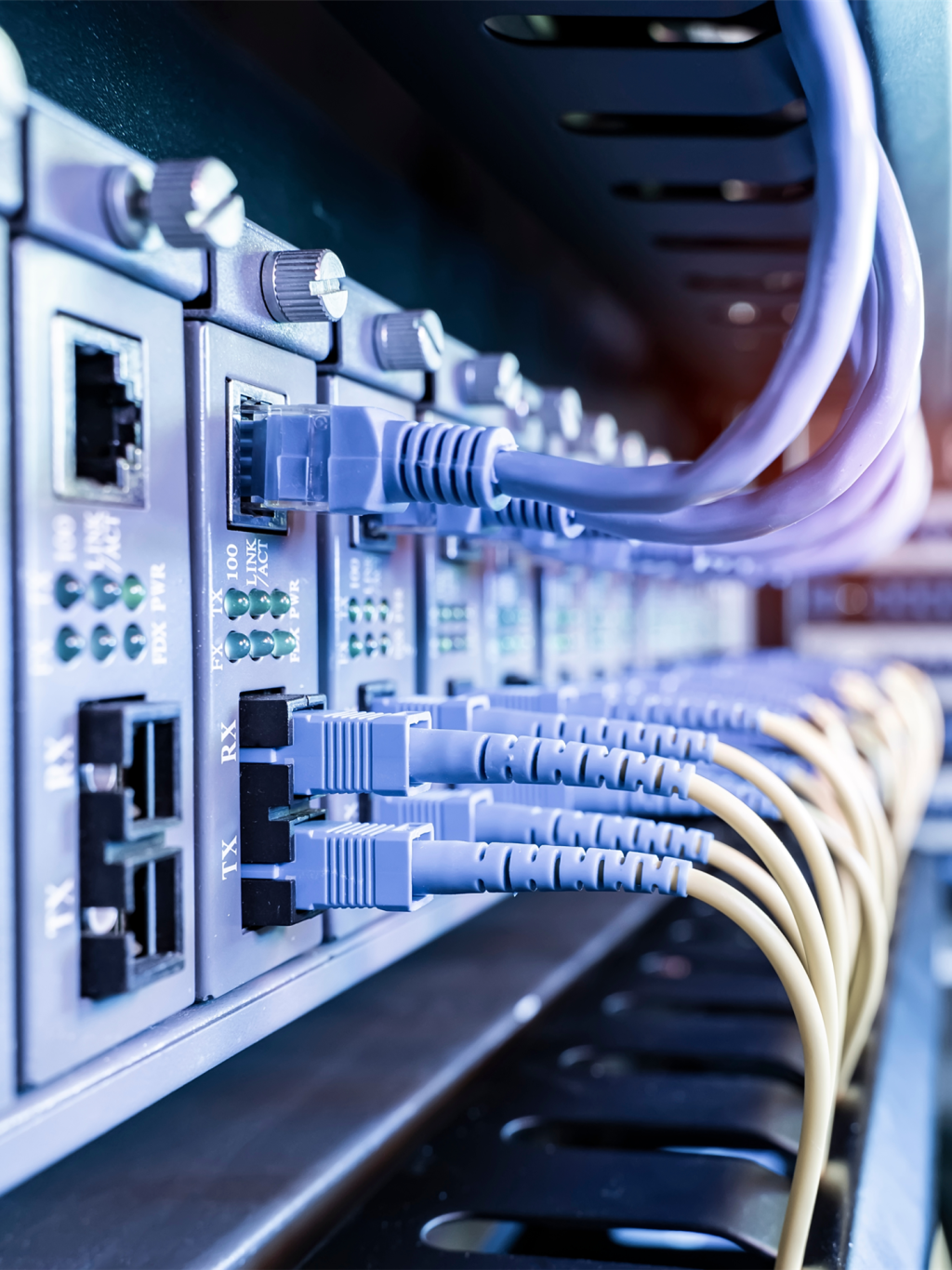

Scenario A: Machines already on LAN
Nothing changes for the Machinist.
The workflow of posting G-Codes to the machine remains the same.
Posting back from the machine gets even more comfortable.
No Changes - Just compliant now
-
Scenario B: Currently using USB
Add NCFirewall™ to your IT infrastructure and LAN connect your machines.
Now you can access the files through NCFirewall™ right from the machine.
No lost USB sticks any more.
No confusion about file versions and revisions.
No need for sanitization.
Less hassle,more convenient and now fully compliant.
Key Features and Advantages
-
CMMC / NIST 800-171 Compliance
Implements boundary control and logging required for certification.
-
Zero-Trust File Management
Each NC file must pass structural and syntax validation before release.
-
Centralized Audit Trail
Every transfer is timestamped, user-linked, and exportable.
-
Machine-Level Configuration
Per-machine directories, post-back options, and allowed extensions.
-
Secure Quarantine
Isolates non-compliant or failed transfers
-
Operator Awareness
Desktop notifications confirm every action
Compliance Point-Benefits: With vs Without NCFirewall™
CMMC Level 2 audits evaluate ~110 NIST 800-171 controls. Each control carries 1–5 points; deductions reduce a shop’s score from a possible 110. A passing score typically falls near 88.
Impact of NCFirewall™
|
Control Family |
Requirement ID |
Typical Points |
Without NCFirewall™ |
With NCFirewall™ |
|
AC – Access Control |
3.1.3 |
5 |
Unrestricted file flow |
Validated, restricted flow |
|
AU – Audit & Accountability |
3.3.1 |
5 |
No audit trail for CNC files |
Comprehensive logging |
|
MP – Media Protection |
3.8.9 |
5 |
USB transfer risk |
USB eliminated |
|
SC – System & Comms Protection |
3.13.11 |
5 |
No boundary protection |
Dedicated OT firewall |
|
CM – Configuration Mgmt |
3.4.8 |
3 |
Unverified file changes |
Automatic quarantine and validation |
Potential Improvement
Shops typically lose 20–25 points across these high-value controls.
Deploying NCFirewall™ restores those points—often the difference between failing and passing CMMC Level 2.
Module overview
NCFirewall™ Base License
Base License per shop. Add machine licenses as needed
Can serve 1 to 400 machines
$1,999.00 per year
NCFirewall™ Machine License
Per-Machine License includes posting back functionality
Post to machine
Posting back from machine
File validation for 10+ G-Code dialects
$999.00 initial, $499.00 per year
NCFirewall™ PC Client License
PC Client for Windows 10 LTSC /Windows 11 Pro/Pro Workstation
Available as stand alone or plug in for ShopPortal4
$99.00 initial, $49.00 per year

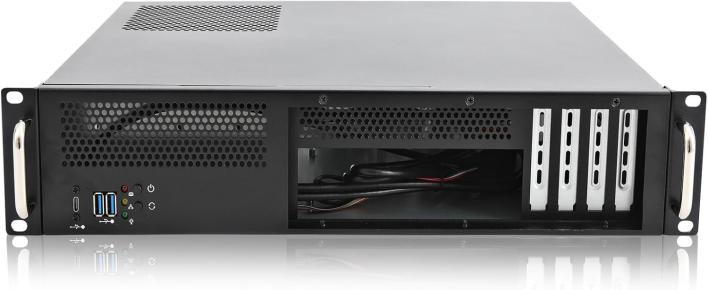

NCFirewall™ Hardware
Optional Industrial Edge Server Appliance for NCFirewall™
Intel Core i7-14700 CPU
16GB DDR5 Ram (up to 64GB optional)
19" rack mount server case with front connections
512GB of storage (optional RAID configurations)
Industrial grade monitored fan setup
OS Windows 11 Pro Workstation
